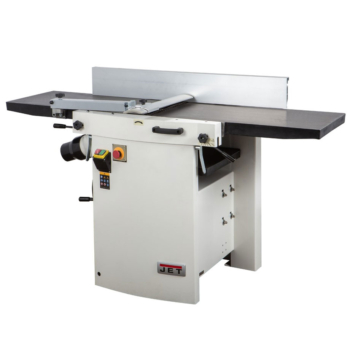

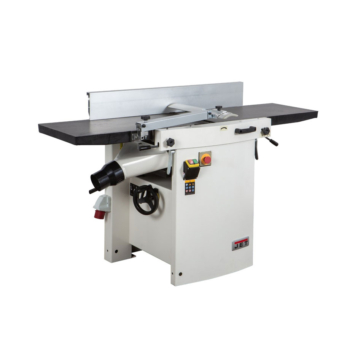

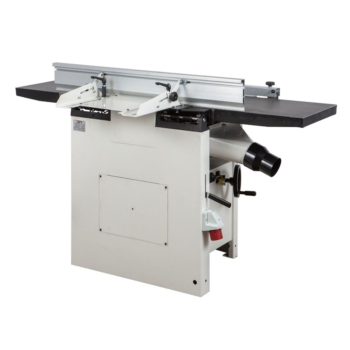

Jet JPT-410HH Planer Thicknesser with Spiral Cutterhead
10000296T
6195,00 € / pcs
Description
Jet JPT-410HH Planer Thicknesser is equipped with Spiral cutterhead, heavy-duty cast iron tables and with a superior 407mm planing width for the professionals needs. Up to 50% quieter Spiral Cutterhead saves money, time and effort as well gives top-quality cutting results even for the most difficult types of wood.

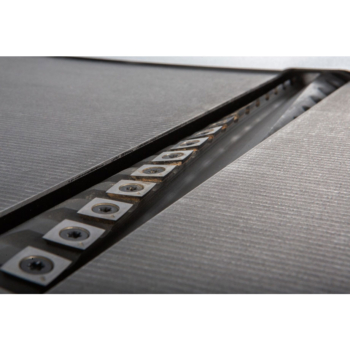

Spiral cutterhead carbide blades lasts up to 40 times longer than standard HSS blades, which guarantees low operating costs and reduces the need for maintenance. Carbide blades have four cutting sides per blade, so if one of the blades gets a scab when planing on nail for example, you can simply turn the blade around with the included torx key and continue working. Carbide blades never need to be adjusted or re-sharpened.

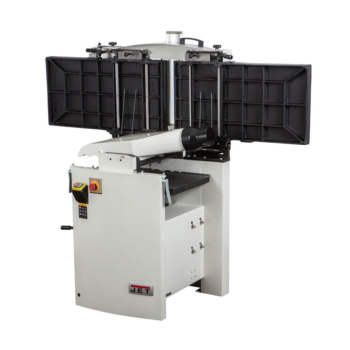

Switching from jointing to thicknessing is simple and easy step that can be done in 10 seconds. Just tilt the jointing tables to the side and turn the dust hood over the cutter. Conversion from thicknessing to jointing is done in the reverse order just as easily and quickly without disassembling any parts. Jointing tables are always placed in the right position and no adjustments need to be made.

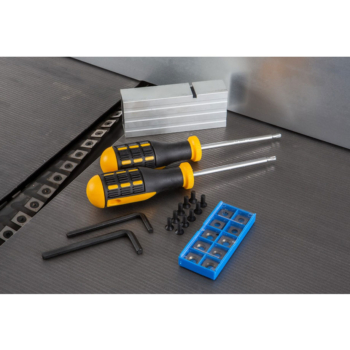

Jet JPT-410HH is delivered as ready to use. The package includes 5 replacement blades, push blocks and blade changing tools. You can find spare blades for the machine here.

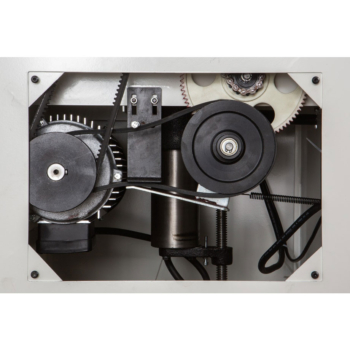

- Tehokas, hiljainen ja pitkäikäinen 4500W induktiomoottori
- Helical kutteri käännettävillä teräpaloilla
- Tasohöyläys korkeudensäätö 4 – 225 mm vahvuisille kappaleille

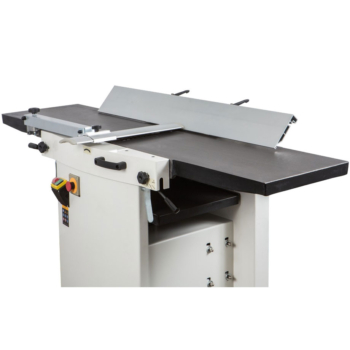

- Over 1.6m long precision-machined cast-iron straightening table ensures high precision and excellent stability
- Oikohöyläys syvyys 0 – 3 mm on helppo säätää vipua kääntämällä
- Vaihtaminen oikohöyläyksestä tasohöyläykseen onnistuu helposti ja nopeasti alle 10 sekunnissa

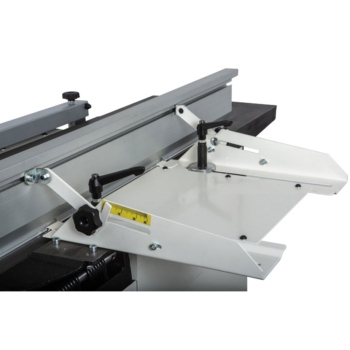

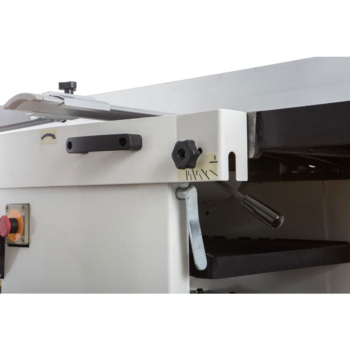

- Lujatekoinen alumiiniprofiilista valmistettu sivuvaste, teräksinen aluslevy ja laadukkaat kiristimet pitävät vasteen paikoillaan kovemmassakin rasituksessa

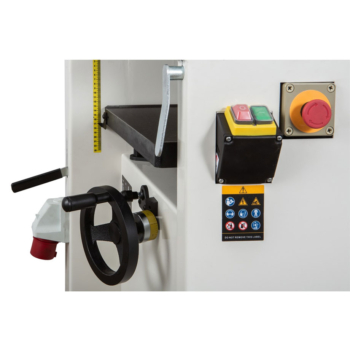

- Tasopöydän säätöpyörässä on erillinen mitta-asteikko, jolla voit hienosäätää tasopöydän korkeutta jopa 0.1 mm tarkkuudella

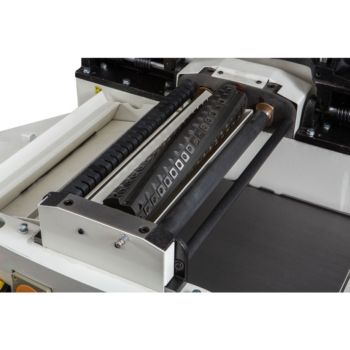

- Planer feed rollers can be switched off when not in use
- 120 mm puruimuliitäntä ja adapteri 100 mm imuletkulle
- Jet JPT Digital Thickness Display and pyöräalusta is sold separately
| Motor | 4500W S6 40% 3000W S1 100% |
|---|---|
| Voltage | 400V (3-phase) |
| Planing width | 407mm |
| Planing thickness max. | 225mm |
| Cutting depth | 0 – 3.0mm |
| Blade count | 72kpl |
| Blade size | 15 x 15 x 2.5mm |
| Jointer table lenght | 1660mm |
| Planer table lenght | 600mm |
| Planing lenght min. | 150mm |
| Fence lenght | 1100mm |
| Fence tilting | 0-45° |
| Feed Rate | 7m/min |
| Speed | 5000rpm |
| Cutter diameter | 70mm |
| Dust Port | 100mm |
| Dimensions | 1660 x 920 x 1000mm |
| Weight (Package) | 330kg (370kg) |
| Warranty | 60kk 24kk ammattikäytössä |
